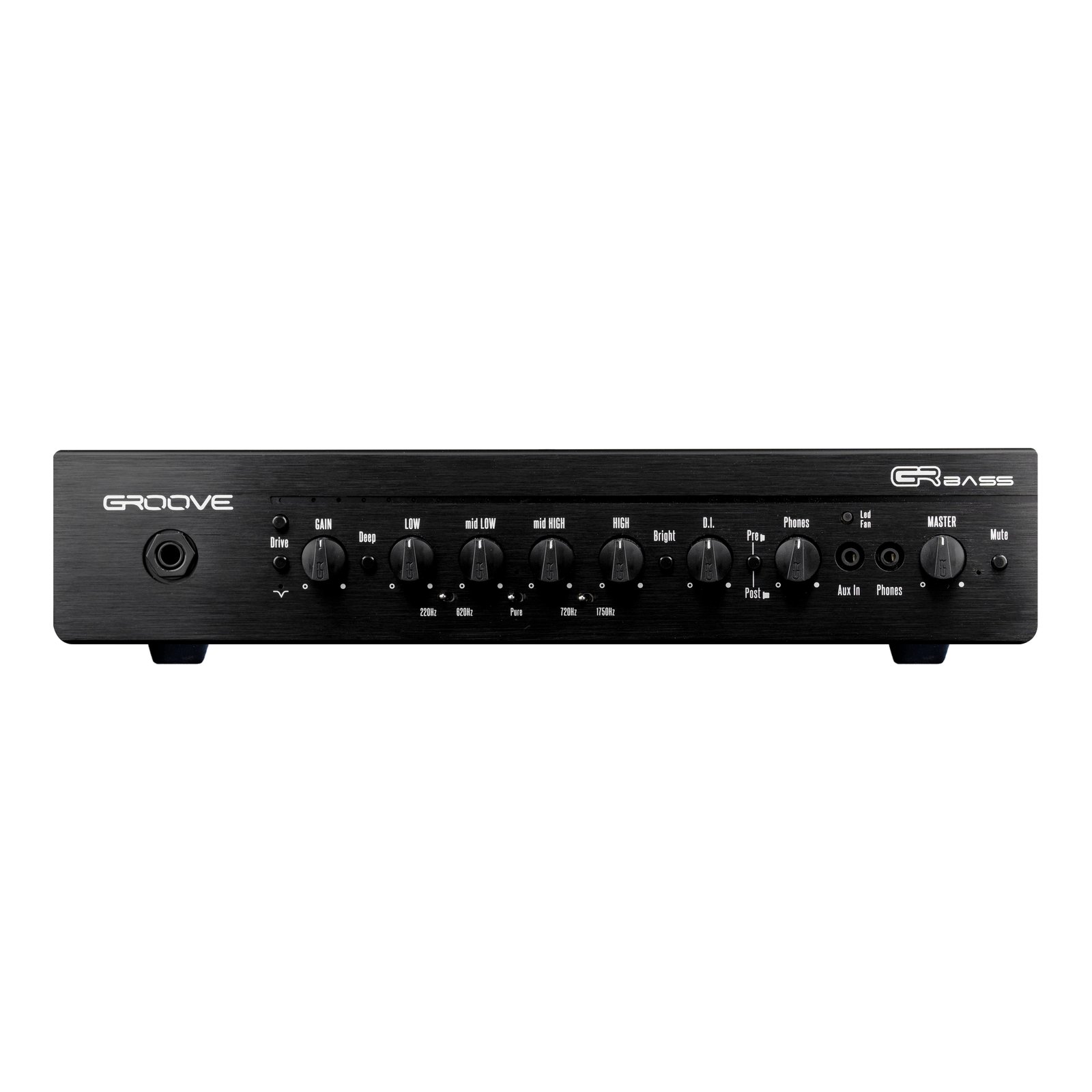

意大利 GR Bass GROOVE 800 / 1200 电子管前级贝斯功放头 中文说明书（美豪音乐集团译制）

1输入插孔 — 贝斯乐器输入插孔。建议使用优质乐器连接线，以获得最佳音质表现。

INPUT JACK — Input jack for your bass. We suggest using a good quality cable, to obtain the best audio performance.

2驱动按钮（Drive）— 通过改变电子管的工作方式来增加或减少电子管产生的失真度，获得不同的音色质感。

DRIVE BUTTON — Increases and reduces the distortion created by the tubes by making them work in different ways

3音色滤波器（Tone Filter）— 激活中频凹陷均衡（Mid Scoop），营造经典的”V型”曲线音色。

TONE FILTER — To activate an eq. mid scooped Filter）— Scoop），

4增益控制旋钮 — 调节前级输入信号的电平大小。

GAIN CONTROL KNOB — Sets the input signal amount of the pre-amp

5低音增强按钮（Deep）— 按下后获得更加低沉、有力的音色。

DEEP BUTTON — Gives a more deep sound

6低频旋钮 — 提升或衰减信号中的低频成分。

LOW KNOB — Increases or reduces the bass frequencies of the signal

7中低频频率切换开关 — 将中低频段的中心频率在 220Hz 和 620Hz 两档之间切换。

MID-Low SWITCH — Use this switch to change the frequency of the mid-low band from 220 Hz and 620 Hz 220Hz 620Hz

8中低频旋钮 — 提升或衰减信号中的中低频成分。

MID-Low KNOB — Increases or reduces the mid-low frequencies of the signal

9纯音直通开关（Pure）— 旁通前级的所有均衡滤波器，获得完全平坦的原声。按钮上方的 LED 指示灯亮起表示直通模式已激活。

PURE SWITCH — Allows bypassing all the equalization filters of the preamplifier. The pure-mode activation is signaled by the LED on the top of the button LED

10中高频旋钮 — 提升或衰减信号中的中高频成分。

MID-High KNOB — Increases or reduces mid-high frequencies of the signal

11中高频频率切换开关 — 将中高频段的中心频率在 720Hz 和 1750Hz 两档之间切换。

MID-High SWITCH — Use this switch to change the frequency of the mid-high and from 720 Hz and 1750 Hz 720Hz 1750Hz

12高频旋钮 — 提升或衰减信号中的高频成分。

HIGH KNOB — Increases or reduces the high frequencies of the signal

13高音增强按钮（Bright）— 按下后获得更加明亮、清晰的音色。

BRIGHT BUTTON — Gives a more bright sound

14DI 音量旋钮 — 调节 DI 输出的信号电平。

DI KNOB — Controls the DI volume DI — DI

15DI 信号源切换按钮（Pre/Post）— 选择发送到 DI 输出的信号类型：PRE EQ（均衡前信号）或 POST EQ（均衡后信号）。

PRE-POST DI BUTTON — Allows you to choose the type of signal to be sent to the DI output DI: PRE EQ or POST EQ DI DI EQ（ POST EQ（

16耳机音量旋钮 — 调节耳机输出的音量大小。

HEADPHONES KNOB — Controls the headphones volume

17辅助输入插孔 — 3.5mm 辅助输入插孔，用于连接外部音频设备（如手机、平板电脑等）。此输入信号可直接从扬声器播放。

AUX-IN JACK — 3.5mm jack Auxiliary input to connect an external audio device 3.5mm

18耳机输出插孔 — 3.5mm 耳机插孔，支持独立监听。

HEADPHONES OUTPUT — 3.5mm plug for headphones 3.5mm

19主音量旋钮 — 控制通道的总输出音量。

MASTER KNOB — Controls the overall volume of the channel

20工作状态指示灯 — 蓝色 = 正常运行；红色 = 输入信号电平过高（削波）。

OPERATION LED — Blue = normal operation – Red = high level of the input signal (clip) = =

21静音按钮 — 关闭功放输出。激活静音模式时，按钮左侧的红色 LED 亮起。静音模式下半音调音器始终保持激活，无论当前处于何种 LED 显示模式。

MUTE BUTTON — Turn off the amplifier output. The activation of this mode turns on the red LED on the left of the button. In this mode, the Tuner is always on, whatever LED mode is on LED LED

22VU 表 — 24 颗 LED 可作为 VU 表使用。注意：LED 变红并不表示信号削波，唯一指示信号削波的是工作状态指示灯（OPERATION LED）。

VU-METER — 24 LEDs that can be used as VU-METER. The LEDs turning red do not indicate that the signal is clipped. The only LED that indicates if the signal is CLIP is the operational LED VU — 24 LED VU LED）。

23LED/风扇模式按钮 — 按下此按钮可循环操作：切换四种 VU 表显示模式；关闭 24 颗 LED 显示条；关闭风扇。最后一次选择将被自动记忆。 风扇模式（GROOVE 800 和 GROOVE 1200）：长按 LED 按钮约 8 秒，风扇关闭（录音室 STUDIO 模式）；再次长按约 8 秒或关机重启可重新激活风扇（现场 LIVE 模式）。在”现场”模式下，风扇在达到预设温度时自动启动；在”录音室”模式下风扇始终关闭，除非达到临界温度时自动重新启动。

LED/FAN BUTTON — By pressing this button you can: – scroll through the four VU-Meter display modes, – turn off the 24 LED bar, – turn off the Fan. The last selection made on this button is always memorized. In the GROOVE 800 and GROOVE 1200 amplifiers, holding down the LED button for about 8 seconds, the fan turns off (STUDIO MODE). To reactivate the fan (LIVE MODE) you must hold down the LED button for about 8 seconds or turn off and turn on the amplifier. In “LIVE” mode, the fan automatically activates when a preset temperature is reached. In “STUDIO” mode the fan is always switched off, except when a critical temperature is reached. In that case the fan automatically reactivates. LED/ — VU 24 LED 800 GROOVE 1200）： LED 8 STUDIO 8 LIVE

24交流电源插座（230V / 115V 自动识别）— IEC 标准电源输入插座。电源具备自动识别功能，可在 230V 或 115V 电压下正常工作（实际支持 100-240VAC，50/60Hz）。随附电源线配备接地线。出于安全考虑，切勿断开设备的接地线。

AC POWER SOCKET (230V – 115V) — IEC plug for power supply connection. The power supply self-recognition feature allows power to the GROOVE with a voltage of 230V or 115V. The supplied cable is equipped with a ground wire. For safety and security reasons, never unplug the ground wire from your equipment. 115V IEC 230V 115V 100-240VAC，50/60Hz）。

25电源开关 — 开启或关闭功放。

POWER ON/OFF SWITCH — Switch on and off the amplifier.

269V 直流输出 — 9V DC 输出，可为外部效果器等设备供电（建议最多连接 4-5 个踏板效果器）。极性为内负外正（中心负极）。

9 VDC Out — 9V DC output to connect external equipment (we recommend connecting 4-5 pedal effects maximum). The polarity is center negative. 9V — 9V DC 4-5

27效果发送（Send）— 6.35mm 插孔，连接外部效果器的输入端。

SEND — 6.35mm jack plug to connect an external effect’s input 6.35mm

28效果返回（Return）— 6.35mm 插孔，连接外部效果器的输出端。

RETURN — 6.35mm jack plug to connect an external effect’s output 6.35mm

29XLR 辅助输入 — XLR 平衡辅助输入，用于连接外部音频设备。此输入信号仅从耳机输出播放，不会进入功放主信号通路，可作为独立监听源使用。

AUX-IN XLR — XLR Auxiliary input to connect an external audio device. This input is only played from the headphone output. XLR — XLR

30DI 输出（XLR 平衡）— DI 输出配备防爆音系统（Anti-bump），允许在调音台仍处于开启状态时开关 GROOVE，而不会产生令人烦恼的爆音。GR Bass 的 DI 被公认为行业最佳之一，适用于现场和录音室等专业场合。

DI OUTPUT — XLR plug. The DI output is equipped with an anti-bump system, which allows you to turn on and off GROOVE even with the mixer line still on, without causing the annoying and noisy bump. DI DI GROOVE， Bass DI

31接地断开按钮（GND Lift）— 将 DI 输出与接地线隔离，用于消除接地环路噪音。

GND LIFT BUTTON — Isolates the DI output from the ground wire. Lift）— DI

32脚踏开关接口 — 连接外接脚踏开关，用于远程开启/关闭静音（Mute）和驱动（Drive）功能。

FOOTSWITCH — Turns the MUTE and DRIVE functions on and off.

33扬声器输出（Speakon）— 兼容 6.35mm 插孔和 2 极 Speakon 连接器，推荐使用 2 极 Speakon 连接器。切勿使用普通 6.35mm 吉他线连接功放与扬声器箱体。最小总负载阻抗为 2.7Ω。配备 2 个 Speakon Combo 输出接口。

SPEAKON OUTPUT — It is possible to use a 6.35 mm jack. We recommend using a 2 pole Speakon connector. Never use a 6.35 jack guitar cable to connect your amplifier to your speakers. 6.35mm 2 Speakon 2 Speakon 6.35mm 2.7Ω。 2 Speakon Combo
